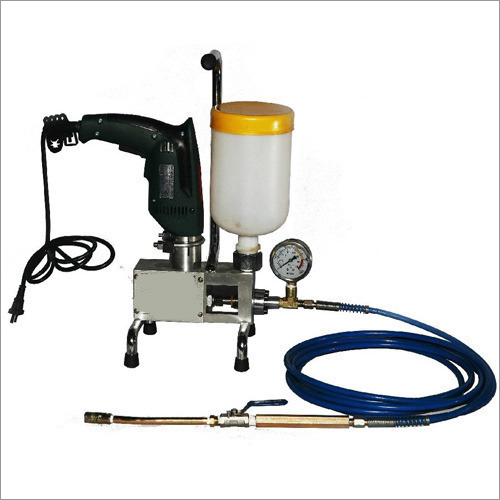

1K PU Injection Grouting Machine

Price 32000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

1K PU Injection Grouting Machine Specification

Mounting Type
Portable, Handheld

Inlet/Outlet
1/4 inch BSP

Caliber
8 mm

Speed
2800 RPM

Working Temperature
-10C to 50C

Head Size
Medium

Frequency
50/60 Hz

Control System
Manual On/Off Switch

Discharge Pressure
70 MPa

Voltage
220V

Theory
Single component PU

Flow Rate
2 L/min

Features
Lightweight, Easy to maintain, High pressure

Noise Level
75 dB

Max Suction
0.7 m

Usage
Industrial

Material
Aluminum Alloy, Stainless Steel

Structure
Portable, Compact

Size
75cm*50cm*40cm

Power
220 Volt (v)

Product Type
Grouting Machine

Standard
ISO, CE certified

Weight
8.5 Kilograms (kg)

Fuel Type
Electric

Pressure
10000 psi / 70 MPa

Application
Concrete crack injection, Waterproofing

Suction Type
Direct suction

Seals Type
FEP / High Pressure PU

Priming
Manual priming

Pump Type
Plunger pump

Capacity
5 L

Hose Length
5 m

Maintenance
Low maintenance required

Operation Mode
Single person

Viscosity Range
100~1000 cps

1K PU Injection Grouting Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Delivery Time
7 Days

Main Domestic Market
All India

About 1K PU Injection Grouting Machine

1K PU Injection Grouting Machine offers accurate length and accurate size polishing and spraying on the wall and ceiling. It is easy to handle, use and operate machine available in the paint industry. The suitable measurement is resulting due to a multi-point sliding block urgent structure loaded in the machine. Ideal balance and measurement are availed using the machine. Residence, commercial buildings, and industrial structures are the areas where this 1K PU Injection Grouting Machine is demanded largely.

Product Specification

Distance of Conveying	10 meters
Brand/Make	Hyflux
Application	Multi Purpose
Work Area	Multiple
I Deal In	New Only
Model/Type	Hyflux 1K Machine
Material Procurement	Customer End
Capacity	5 L
Grout Purpose	Voids
Power	220V/700W
Size of the Material	less than 2mm
Packing Dimension	75cm x 50cm x 40cm
Machine Weight	8.5 KG
Injection Pressure	0-10000 psi (700kg/cm2)

Efficient High-Pressure Injection

Designed for effective crack injection and waterproofing, the 1K PU Injection Grouting Machine delivers up to 70 MPa pressure, ensuring deep penetration into concrete structures. This high pressure makes it suitable for intricate repairs and preventive waterproofing in both commercial and industrial settings.

Durable and Portable Design

Constructed from premium aluminum alloy and stainless steel, this grouting machine is built to withstand harsh job-site conditions. Its compact size and lightweight design (8.5 kg) allow for easy transport and setup, making it ideal for handheld or portable use wherever needed.

User-Friendly and Low Maintenance

The machine features a simple manual On/Off control system and requires minimal maintenance. Its manual priming and direct suction capability ensure straightforward operation and easy cleaning, saving valuable time for operators and service technicians.

FAQ's of 1K PU Injection Grouting Machine:

Q: How does the 1K PU Injection Grouting Machine work for concrete crack repairs?

A: The machine injects single-component polyurethane (PU) resin into cracks using a high-pressure plunger pump. The resin travels through the 5 m hose and enters the concrete, expanding to fill and seal cracks, thereby restoring structural integrity and preventing water ingress.

Q: What types of projects are suitable for this grouting machine?

A: This grouting machine is ideal for industrial crack injection and waterproofing projects, including repair of basements, retaining walls, tunnels, and other concrete structures that require precise, high-pressure PU injection.

Q: When should I use the 1K PU Injection Grouting Machine over other repair methods?

A: Use this machine when you need targeted, rapid, and durable sealing of cracks or joints, especially in concrete elements exposed to water or moisture. Its high-pressure output ensures deep penetration and long-lasting results compared to surface-level treatments.

Q: Where can I use this grouting machine safely and efficiently?

A: The machine is designed for indoor and outdoor industrial environments across India. Its operation range from -10C to 50C and compact, portable design make it suitable for various job sites, including confined spaces and high-access points.

Q: What are the maintenance requirements for the machine?

A: This machine is engineered for low maintenance. Routine care involves cleaning the pump and hose after each use, checking seals (FEP/high-pressure PU), and ensuring the manual priming and control systems are in good working order.

Q: What are the key benefits of using this portable grouting machine?

A: Key benefits include its lightweight, portable form factor; high-pressure, precise injection for effective waterproofing; low noise operation; durable materials; ease of use for single-person operation; and compliance with ISO and CE standards.
